3 Axle Cargo Trailer
This 3 axle cargo trailer is a heavy-duty general-purpose semi-trailer designed for the efficient transport of bulk and heavy cargo.
3 Axle Cargo Trailer
- Home
- > Product
- > Semi-Trailers
- > Livestock Semi-Trailer
- > 3 Axle Cargo Trailer
3 Axle Cargo Trailer
Send Inquiry
Chat Now
Product Details
This 3 axle cargo trailer is a heavy-duty general-purpose semi-trailer designed for the efficient transport of bulk and heavy cargo. It features a stable three-axle structure, a high-strength cargo platform, and strong load-bearing capacity, making it widely applicable in long-distance logistics, building material transportation, agricultural product distribution, and engineering equipment transport.
Features of 3 axle cargo semi trailer
1. High-strength Q345 steel main beams, reinforced and welded, provide excellent torsional and bending resistance, allowing for long-term heavy load bearing.
2. 3-axle design (optional FUWA/BPW axles) ensures reasonable load distribution, stable driving, and adaptability to various road conditions.
3. Standard mechanical leaf spring suspension provides excellent shock absorption, effectively protecting cargo from impacts during transport.
4. Equipped with a full air braking system with ABS, ensuring safe and stable braking even under full load.
5. Large flatbed platform, with optional side rails, suitable for bagged goods, timber, steel, grain, and various bulk materials.
Specifications of 3 axle cargo trailer
| Overall Dimensions（L x W x H）(mm) | 12500x2500x2550 |
| Cargo box dimension (L x W x H)(mm) | 12000X2300X600 |
| Main beam | The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm material:Q345B |
| Side beam | Q235 16# channel steel |
| Axle | 13Ton, Fuwa brand option one hundred fifty thousand Kilometers no need maintenance |
| Tires | 12R22.5, 12 pcs. Taitong brand |
| Rim | 9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
| King pin | 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
| Landing gear | 28 ton single action supporting legs |
| Steel spring | 10/10/10 leaf spring suspension |
| Air chamber | Six double air chamber |

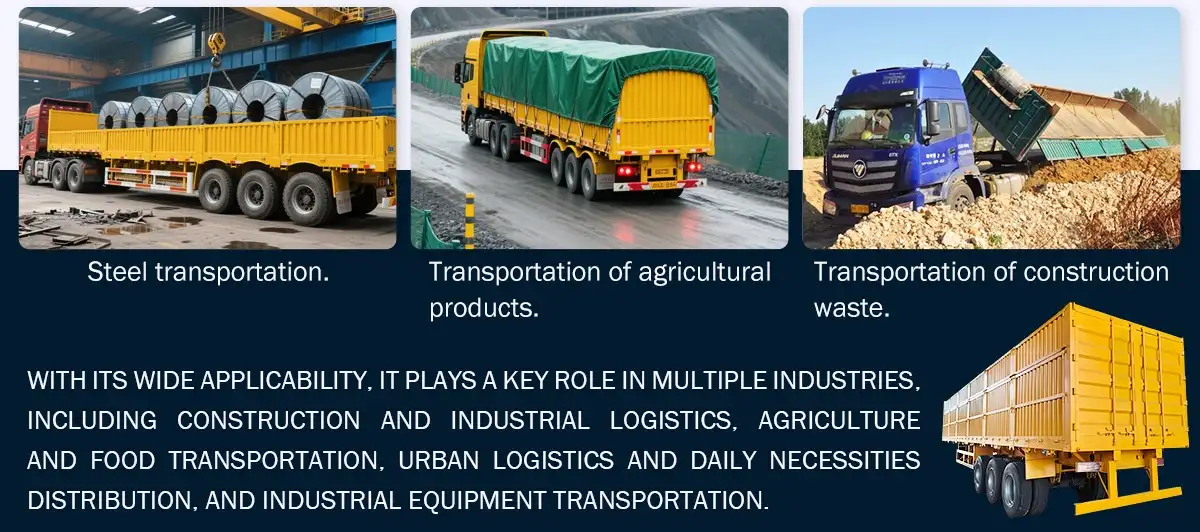

Applications of 3 axle cargo semi trailer
1. Long-distance road logistics and cross-border freight transport.
2. Transportation of sand, gravel, steel, timber, and building materials.
3. Transportation of agricultural products such as grains, vegetables, and feed.
4. Bulk cargo transport to factories, mines, and logistics centers.
5. Short- and medium-distance transport between docks and warehouses.
Packaging and Transport
FAQ
Q: What is the payload of the 3 axle cargo trailer?
A: The standard payload is 40-60 tons, which can be customized according to customer needs.
Q: Can it be made into a fenced or box-type?
A: Yes, fenced, flatbed, and box-type structures are all available.
Q: Do you support choosing the axle brand?
A: Yes, mainstream brands such as FUWA and BPW are available.
Q: Can the size and color be customized?
A: Yes, we can provide comprehensive customization services according to customer requirements.
