2 Axle 40ft Skeletal Container Trailer
The 2 axle 40ft skeletal container trailer is a lightweight and efficient specialized trailer designed specifically for container transportation.
2 Axle 40ft Skeletal Container Trailer
- Home
- > Product
- > Semi-Trailers
- > Container Semi-Trailer
- > 2 Axle 40ft Skeletal Container Trailer
2 Axle 40ft Skeletal Container Trailer
Send Inquiry
Chat Now
Product Details

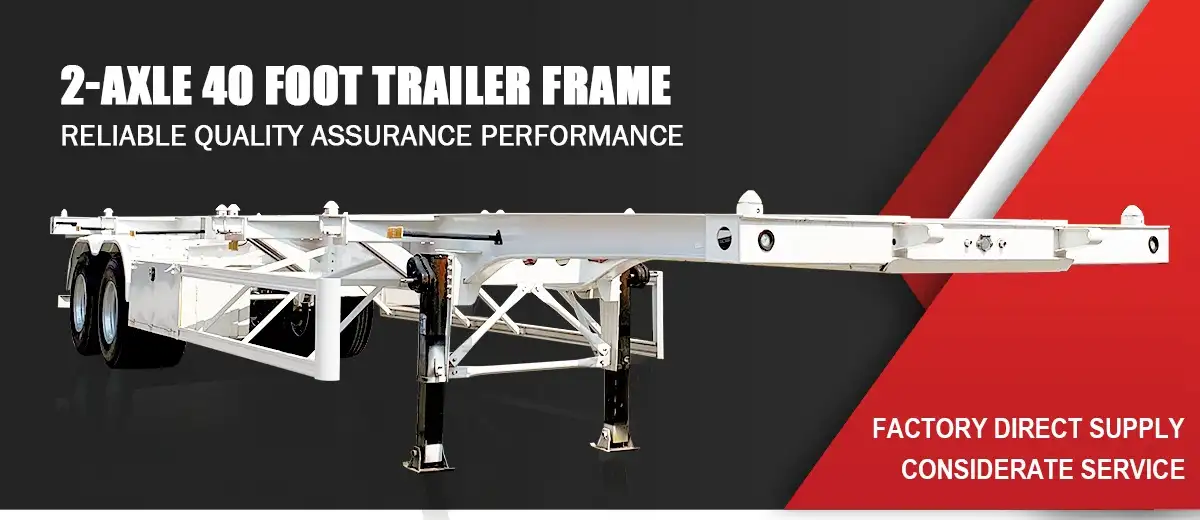

The 2 axle 40ft skeletal container trailer is a lightweight and efficient specialized trailer designed specifically for container transportation. It utilizes a high-strength steel skeleton structure and is primarily used for transporting 20-foot and 40-foot standard containers. The skeletal container trailer boasts advantages such as a small turning radius, flexible operation, low weight, and high transportation efficiency.
Specifications of 2 axle skeletal container trailer
| Type | 40 ft flatbed container semi trailer |
| Function | 2x 20ft and 1x40ft container or other stuff |
| Main beam | Material is Q345B,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm. |
| Container locks | 12 pieces |

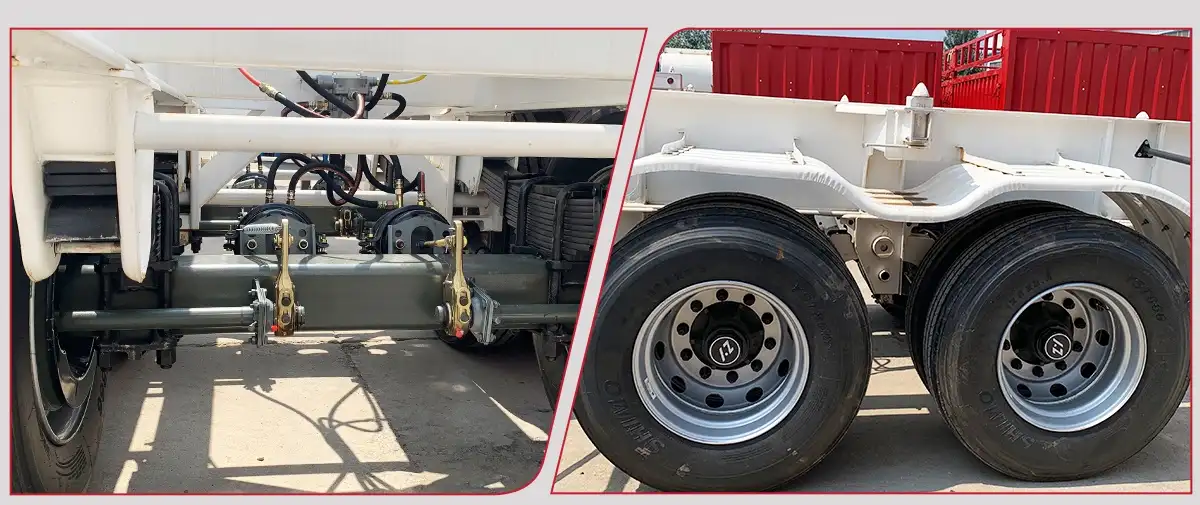

| Axle | 3x13ton FUWA brand(other brand can be choice |
| King pin | 90mm or 50mm |

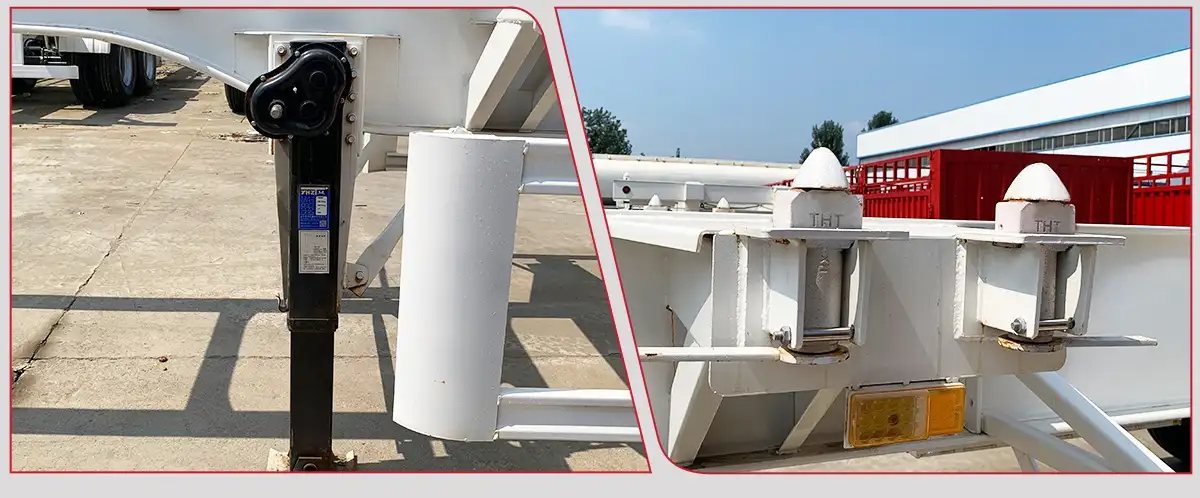

| Landing gear | 28Tons |
| Tire | Triangle brand 12R22.5 8 pieces |
Features of the skeletal container trailer
1. Lightweight skeleton design effectively reduces vehicle weight and increases payload.
2. Equipped with two high-quality heavy-duty axles, ensuring structural stability and strong load-bearing capacity.
3. Equipped with standard container torsion locks to securely hold containers and ensure transportation safety.
4. Reasonable axle load distribution provides good stability, suitable for highway and port operations.
5. High-strength steel main beams offer strong torsional resistance, durability, and a long service life.
6. Standard air braking system with ABS provides safe and reliable braking performance.
7. Compact structure and small turning radius allow for flexible maneuvering in open areas and narrow roads.
8. Simple structure, low failure rate, easy maintenance, and low operating costs.
Applications of 2 axle 40ft skeletal container trailer
Port container loading and unloading
Container yard transshipment and logistics distribution
Short and medium-haul container road transport
Cross-border container transport
Logistics fleet and terminal-specific container transport
FAQ
Q: What types of containers can this skeletal container trailer transport?
A: Suitable for 20ft and 40ft standard containers.
Q: What is the payload of this 2 axle 40ft skeletal container trailer?
A: Generally 20-30 tons, customizable to requirements.
Q: Is the torsion lock adjustable?
A: Yes, the position is adjustable to accommodate containers of different sizes.
Q: Do you support customization?
A: Yes, we can customize axles, suspension, colors, and logos according to customer needs.
