Shacman Sagmoto X3s 6x4 420hp Tractor Head | Chengda
The Shacman Sagmoto X3s 6x4 tractor head (model SX4253G3M42J3240) is a heavy-duty tractor unit for long-haul logistics and heavy haulage. It runs a Cummins ISME 420-30 engine rated 420 HP Euro III with a Fast 12JSD200T-B 12-speed manual gearbox, 6x4 drive, 16 T two-stage rear axle at 4.266 ratio, GCW 40 t and a 400 L aluminum fuel tank. The X3s high-roof cab with A/C, 315/80R22.5 18PR tyres and 10/12 leaf spring suspension keep drivers comfortable on long routes up to 95 km/h. Contact Chengda for full specs and a quote.
Get a factory-direct price with full shipping cost to your port.
 |
See it from every angle — request more photos of your preferred configuration.
Need a specific steel grade or compartment layout? We build to your spec.
| Parameter | Value |
|---|---|
| General Information | |
| Truck Name | Shacman X3s 6×4 420 Tractor Head |
| Model | SX4253G3M42J3240 |
| Series | X3s |
| Type of Vehicle | Tractor Truck |
| Drive | 6×4 |
| GCW | 40 t |
| Engine & Powertrain | |
| Engine | Cummins ISME 420-30 420 HP Euro III |
| Power | 420hp |
| Emission Standard | Euro 3 (Euro III) |
| Gearbox | Manual Fast 12JSD200T-B 12-speed |
| Rear Axle | 16 T two-stage, ratio 4.266 |
| Wheelbase | 3 175+1 400 mm |
| Chassis, Suspension & Fuel System | |
| Frame | 850×300/8+5 mm |
| Suspension | 10/12 leaf springs |
| Fuel Tank | 400 L aluminum |
| Tank Volume (L) | 400 |
| Tyres | 315/80R22.5 18PR |
| Cabin, Performance & Certification | |
| Cabin | X3s high-roof, A/C |
| Max Speed | 95 km/h |
| Maximum Speed(km/h) | 95 |
| Certification | ISO9001, relevant Africa standards |
Full spec sheet with dimensions and axle options on request.
Request Full Specification Sheet
On long-haul freight corridors across Africa, Southeast Asia and the Middle East, the Shacman X3s 6x4 420hp tractor head pulls container and bulk trailers over mixed tarmac and unpaved routes, handling a 40 t GCW with its Cummins ISME 420-30 engine and 12-speed Fast 12JSD200T-B gearbox. Its 6x4 drive and 16 T two-stage rear axle with 4.266 ratio keep traction steady on laterite roads and gravel access ramps, while the 850x300/8+5 mm frame and 10/12 leaf spring suspension carry loaded trailers day after day.
Mining haulage, port drayage, construction material delivery and cross-border logistics are all common duties for this tractor truck, where the 400 L aluminum fuel tank extends working range between refuelling stops and the X3s high-roof A/C sleeper cab reduces driver fatigue on multi-day trips. With a 95 km/h maximum speed and 315/80R22.5 18PR tyres, it suits both highway line-haul and site-to-yard shuttles, backed by Chengda's export support to more than 60 countries.
Tell us your cargo and route — we recommend the right capacity and compartments.

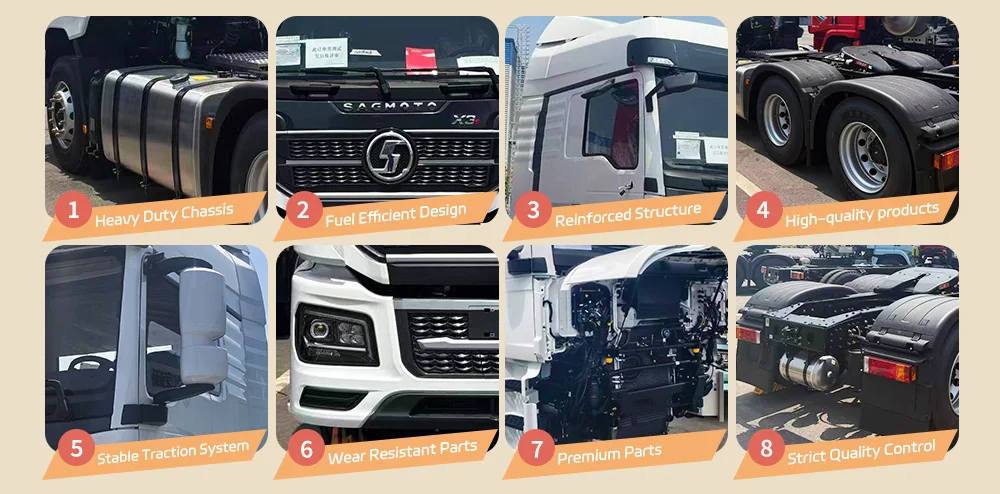

420hp Cummins Power for Heavy Haulage The Cummins ISME 420-30 engine delivers 420 HP to Euro III emission standard, paired with a Manual Fast 12JSD200T-B 12-speed gearbox for smooth torque delivery under full load. | 6x4 Drive with 40 t GCW Capacity A 6×4 drive configuration and 16 T two-stage rear axle with 4.266 ratio give strong traction on gradients and rough roads, supporting a GCW of 40 t for long-distance logistics. |
Reinforced Frame and Leaf Spring Suspension The 850×300/8+5 mm frame combined with 10/12 leaf springs is built to absorb heavy-duty loads and harsh-road vibration, extending chassis service life. | 400 L Aluminum Fuel Tank for Long Routes A 400 L aluminum fuel tank reduces refueling stops on intercity and cross-border hauls, while the lightweight tank construction helps keep payload efficiency. |
X3s High-Roof Cab with A/C The X3s high-roof cabin with A/C offers a comfortable working and rest space for drivers on long-distance trips, helping reduce fatigue and improve safety. | ISO9001 Certified and Africa-Compliant Each unit is supplied with ISO9001 certification and relevant Africa standards, backed by Chengda's export experience to more than 60 countries since 2005. |
Compare features and prices — no obligation.
